Add WireGuard Configuration Peers

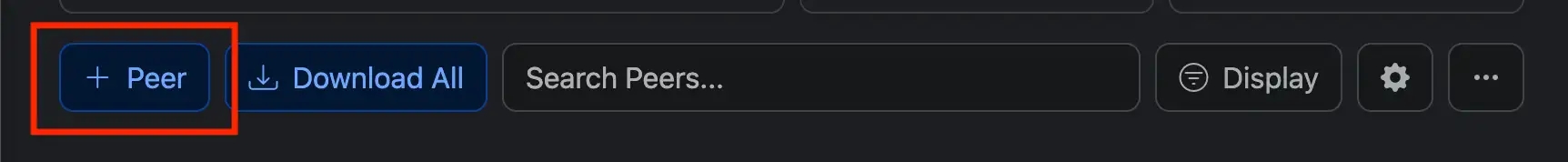

To add a peer, click the "+ Peer" button in your configuration.

Once you click the button, a form similar to adding a configuration appears. Fill in the following fields:

• Name

  • This is not required. You can leave it empty or provide any name you like.

• Private Key & Public Key

  • Required. Both Private and Public Key will be auto-generated.

  • If you want to use your own key pair, toggle the switch "Use your own Private and Public Key".

• Allowed IPs

  • The IP addresses assigned to this peer. An address will be auto-generated with the first available IP.

  • You can add more IP addresses by clicking the "Pick Available IP" button, or type custom IP addresses directly into the input.

• Endpoint Allowed IPs

  • The IP address range whose traffic you want to forward. For example, to forward only the subnet traffic, set this to match the configuration's Allowed IPs.

  • To forward all traffic through WireGuard, set it to:

    0.0.0.0/0, ::/0

• DNS

  • The DNS servers this peer will use.

• Pre-Shared Key

  • Toggle this for an extra layer of security. WireGuard can use an additional symmetric pre-shared key between the server and peer.

  • More information: WireGuard: Next Generation Kernel Network Tunnel, 5.2 - Optional Pre-shared Symmetric Key Mode

• MTU

  • The MTU is automatically determined from the endpoint addresses or the system default route, which is usually a sensible choice.

• Persistent Keepalive

  • If a peer is behind NAT and connects to a public peer, the NAT-ed node must regularly send outgoing pings to keep the connection alive in the NAT router's connection table.
